The Call: Parking Garage Lighting Went Dark During Restoration
The building was undergoing concrete restoration when a drilled opening intersected electrical infrastructure embedded in the slab. The affected conduit served parking-garage lighting. After the strike, portions of the garage were left without normal lighting, creating dark areas that property management needed addressed quickly.
This was not simply a matter of replacing a light fixture. The damaged wiring was concealed inside concrete, the circuit had to be positively identified, and the fault had affected protection upstream at the building's electrical distribution equipment.
Tracing the Fault Back to the Electrical Distribution

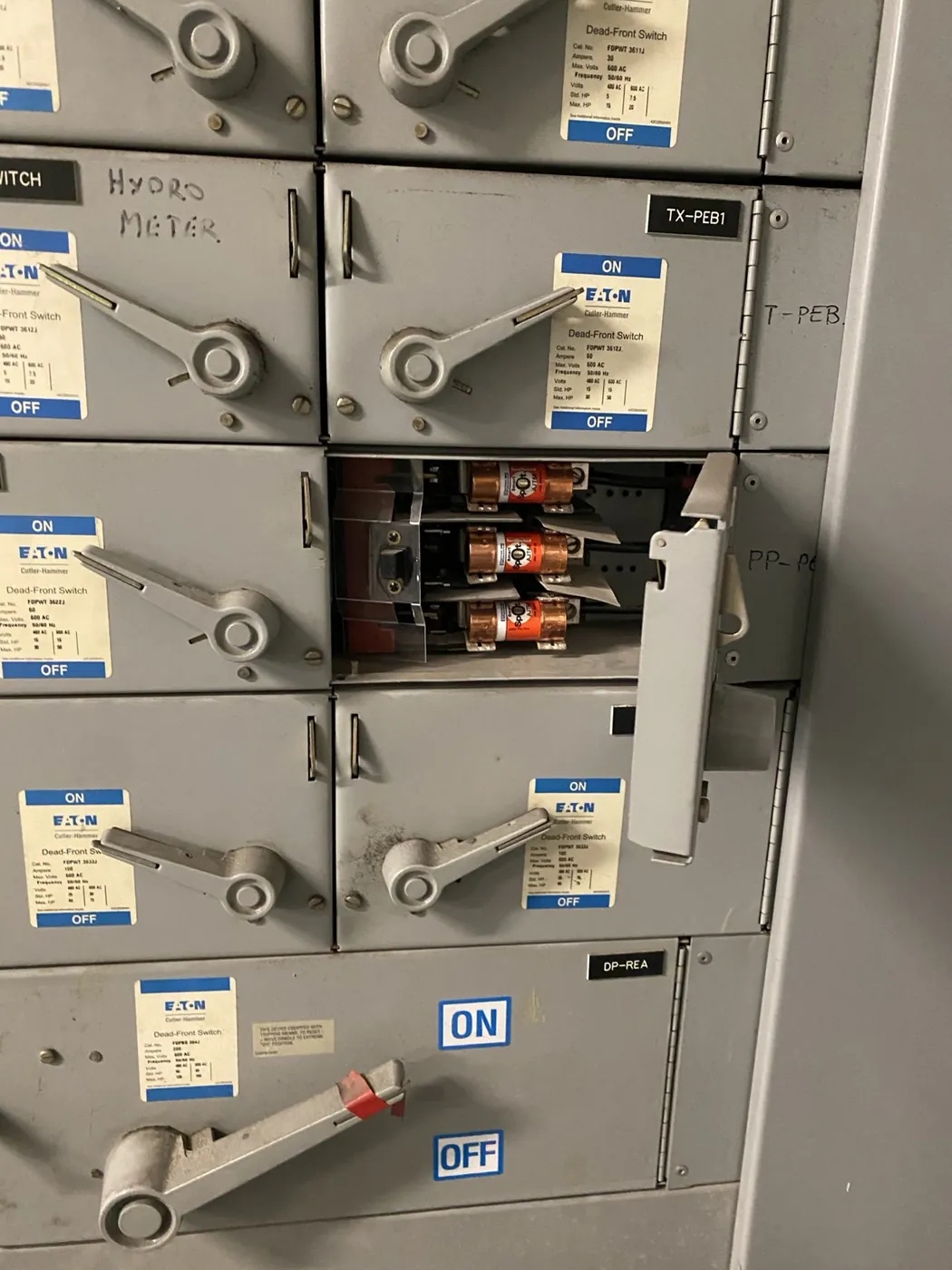

We identified the affected garage-lighting circuit and checked the distribution supplying it. The short-circuit event was significant enough that an upstream fuse at the switchboard had operated.
Before restoring power, the damaged section had to be corrected and the replacement conductors verified so the circuit could be safely returned to service. That sequence — identify, repair, test, then energise — is the core of electrical troubleshooting on commercial distribution.
Repairing the Embedded Conduit and Re-Pulling Conductors

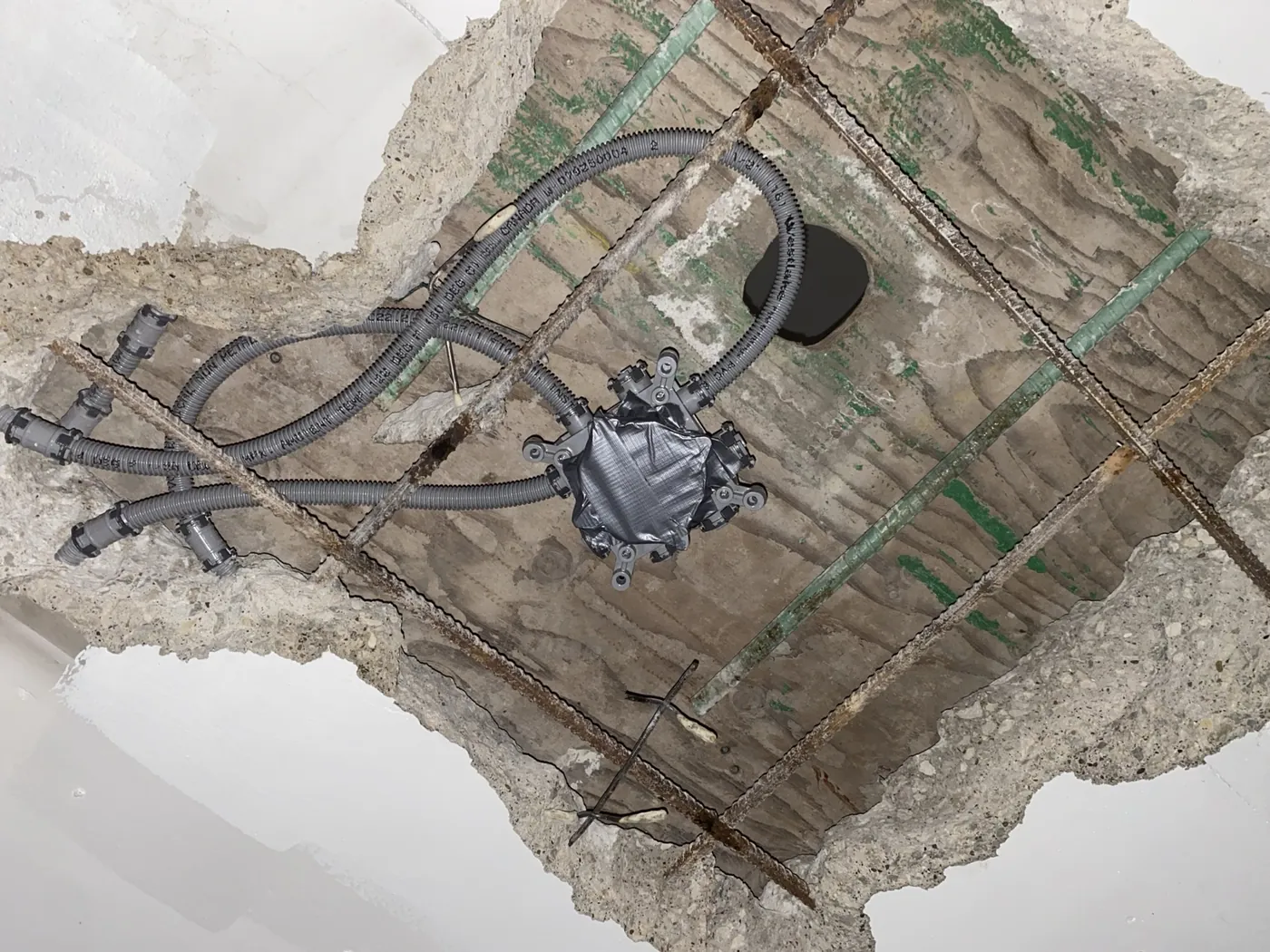

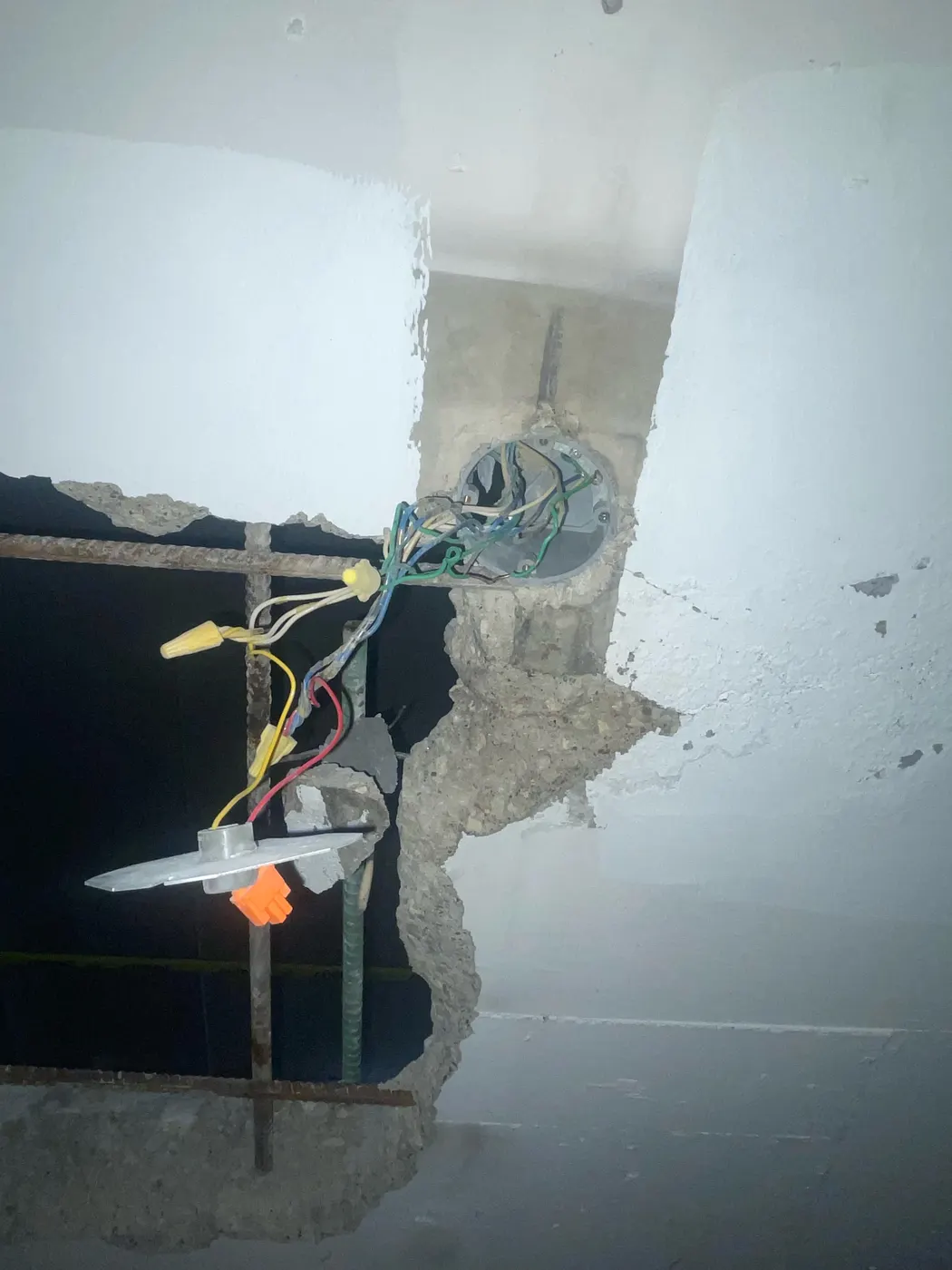

Once the damaged section was exposed, we made the necessary raceway repairs and installed replacement conductors through the repaired path.
Because concrete-restoration damage can affect more than the point that is immediately visible, the circuit was tested before re-energization rather than simply reconnecting the damaged wires.
Testing Before Re-Energization
After the physical repairs were completed, the circuit was checked and the affected lighting was tested. Only after the repaired wiring had been verified was the system returned to service.
Result: Garage Lighting Restored in Under 24 Hours

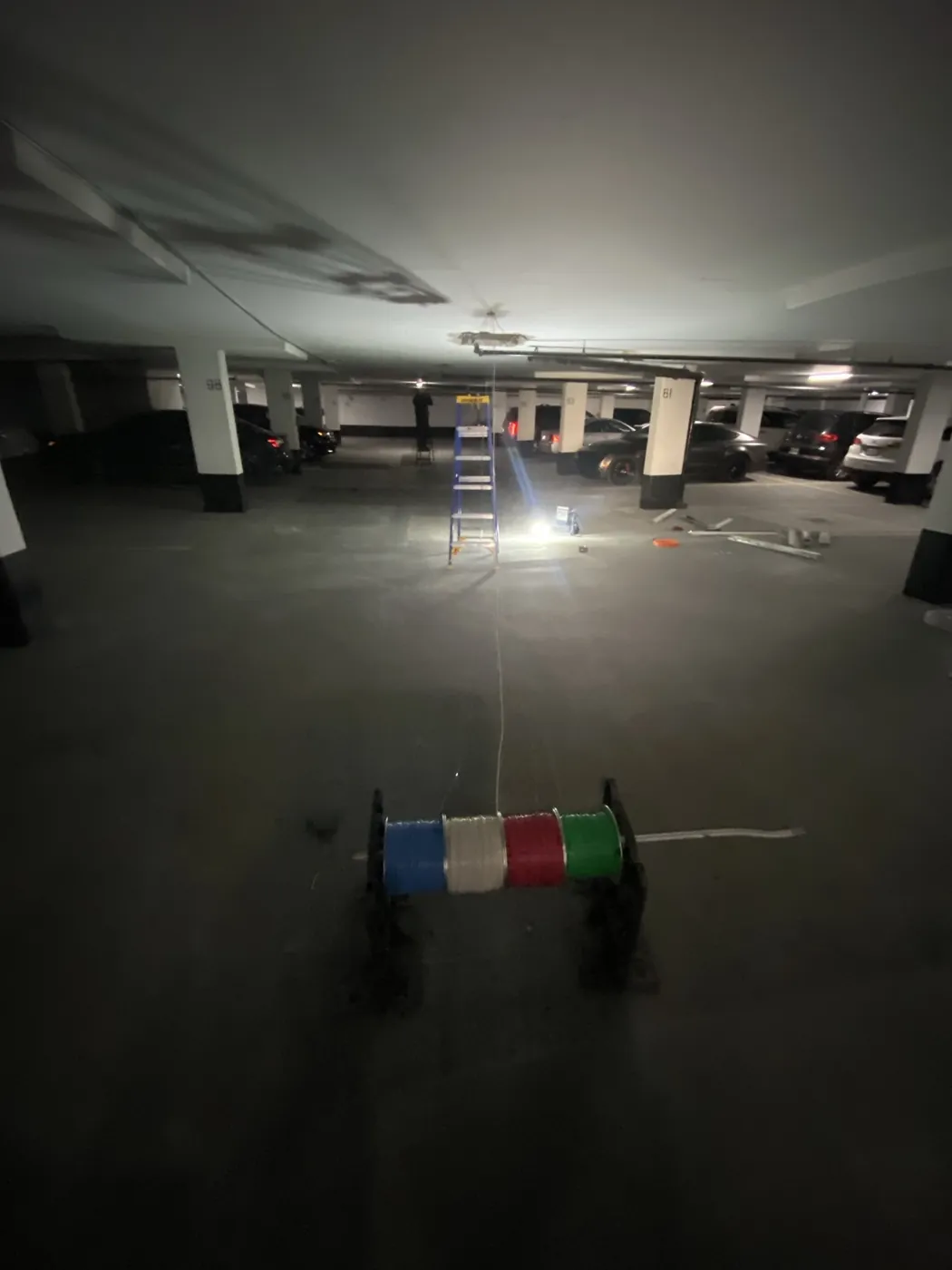

The electrical troubleshooting, conduit repair, conductor replacement, testing and restoration were completed overnight. Power was restored in under 24 hours, and the areas of the parking garage that had been dark after the incident were brought back into operation.
For property managers, the important part of an incident like this is minimising disruption without skipping the diagnostic work. Embedded electrical systems can be difficult to trace after concrete is opened, and a severe fault can affect equipment well beyond the visible damage point. Finding the correct circuit, repairing the raceway, replacing damaged conductors and verifying the system before re-energising helped turn an unexpected restoration incident into a same-night electrical recovery. It is the kind of call our property management electrical service exists for.
